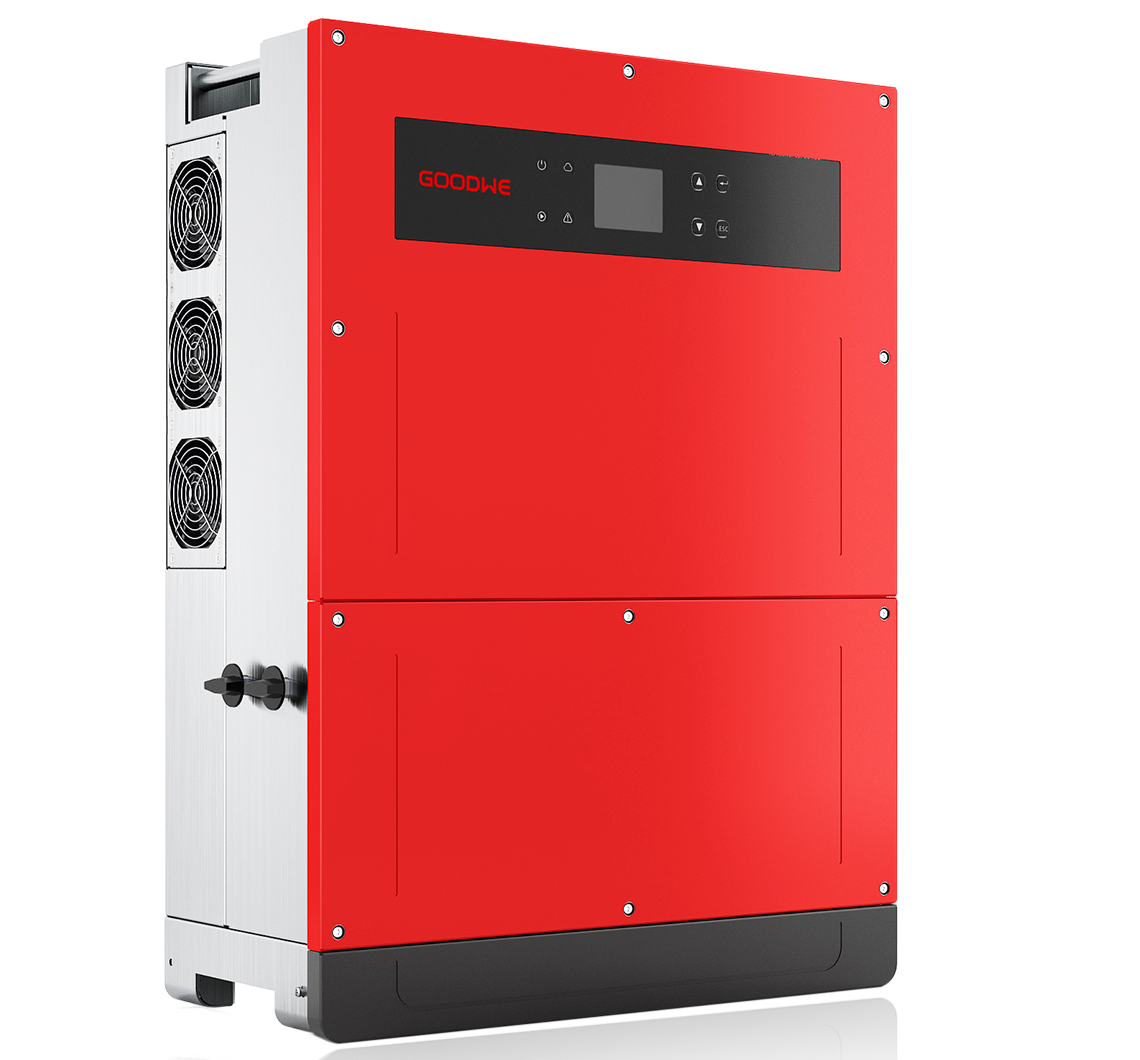

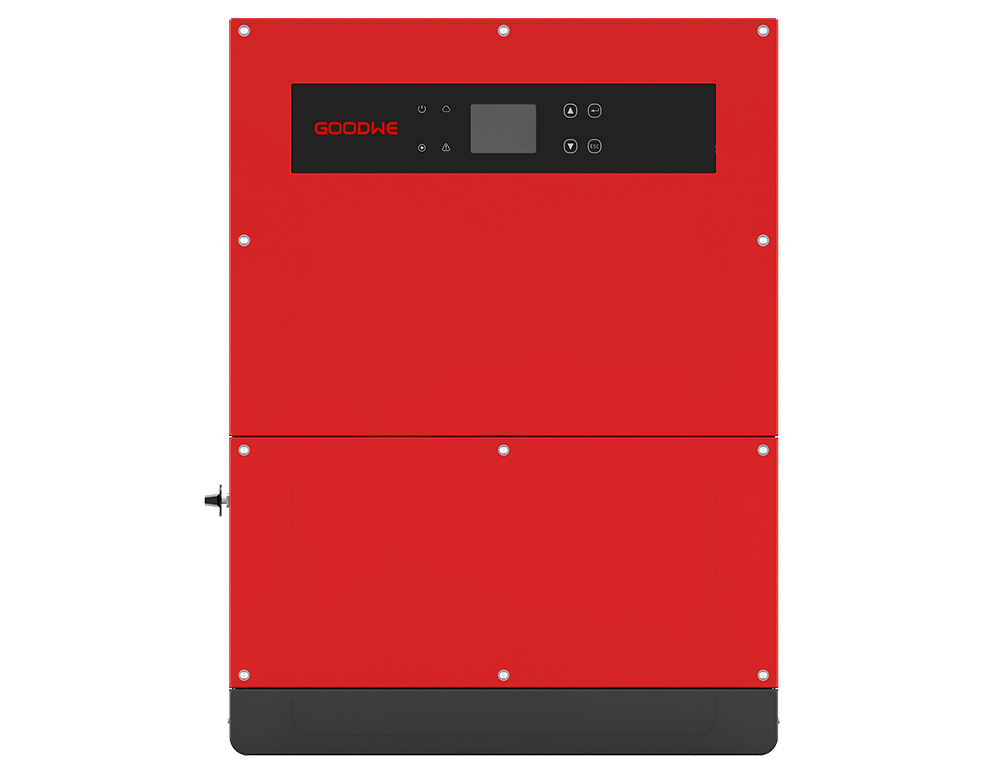

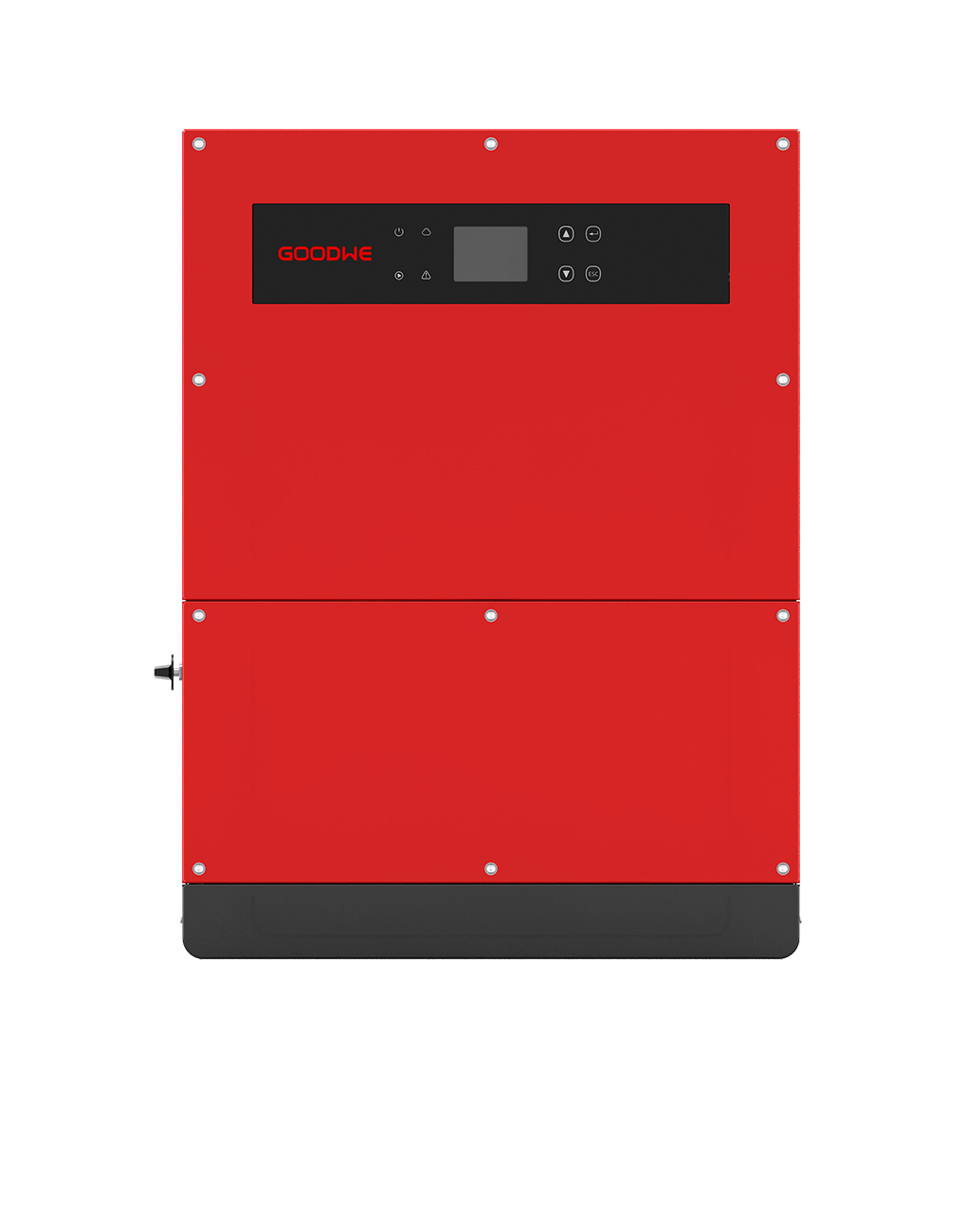

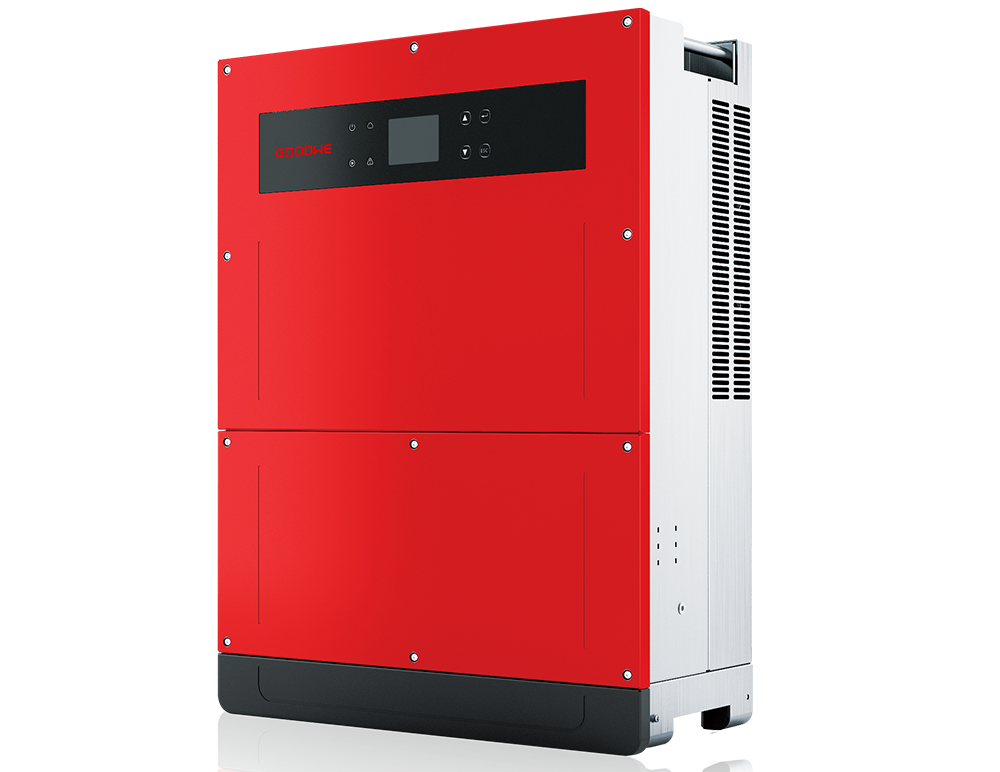

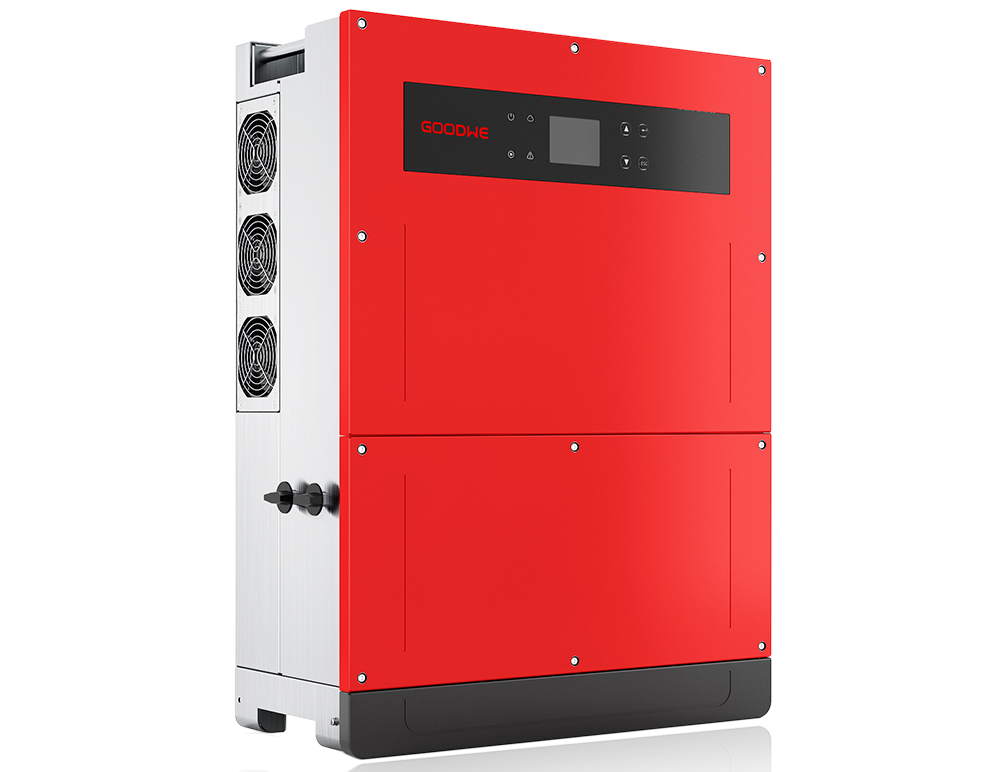

Developed as an efficient response to South American market needs for low-voltage inverters, GoodWe’s LVMT series inverter is suitable for medium and large scale commercial rooftops or ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, GoodWe’s LVMT series can provide extremely high efficiency of 98.8%, thus offering a faster return on investment.
String level monitoring
Up to 180% DC input oversizing
Up to 110% AC output overloading
Up to 98.8% max. efficiency
Full-load running at 50ºC
Power line communication
Low voltage
Latin
undefined
undefined
Four MPPTs Maximize Output
Improve your energy harvest with four MPP trackers to minimize output losses caused by partial shading and other mismatch effects.
High Generation
With 180% DC input oversizing capability, the LVMT allows users to significantly expand the solar array and drive increased power output even under low solar radiation.
180%
DC INPUT OVERSIZING
110%
AC OUTPUT OVERLOADING
OVERVIEW
Modello
GW30KLV-MT
Max. tensione di ingresso (V)
800
Max. corrente di ingresso per MPPT (A)
33/33/22/22
Numero di MPPT/Numero di stringhe per MPPT
4/3-3-2-2
Max. efficienza
98.7%
Tensione nominale di uscita (V)
150~300
Modello
GW35KLV-MT
Max. tensione di ingresso (V)
800
Max. corrente di ingresso per MPPT (A)
33
Numero di MPPT/Numero di stringhe per MPPT
4/3
Max. efficienza
98.8%
Tensione nominale di uscita (V)
150~300
Modello
GW50KLV-MT
Max. tensione di ingresso (V)
800
Max. corrente di ingresso per MPPT (A)
44
Numero di MPPT/Numero di stringhe per MPPT
4/4
Max. efficienza
98.7%
Tensione nominale di uscita (V)
150~300
