EHB Series
(South Africa only) 5-10 kW | Single phase | up to 4 MPPTs | Hybrid inverter (HV)
DOWNLOAD PDF >>
UPS-level switching
AC bypass
Strong backup
undefined
undefined
undefined

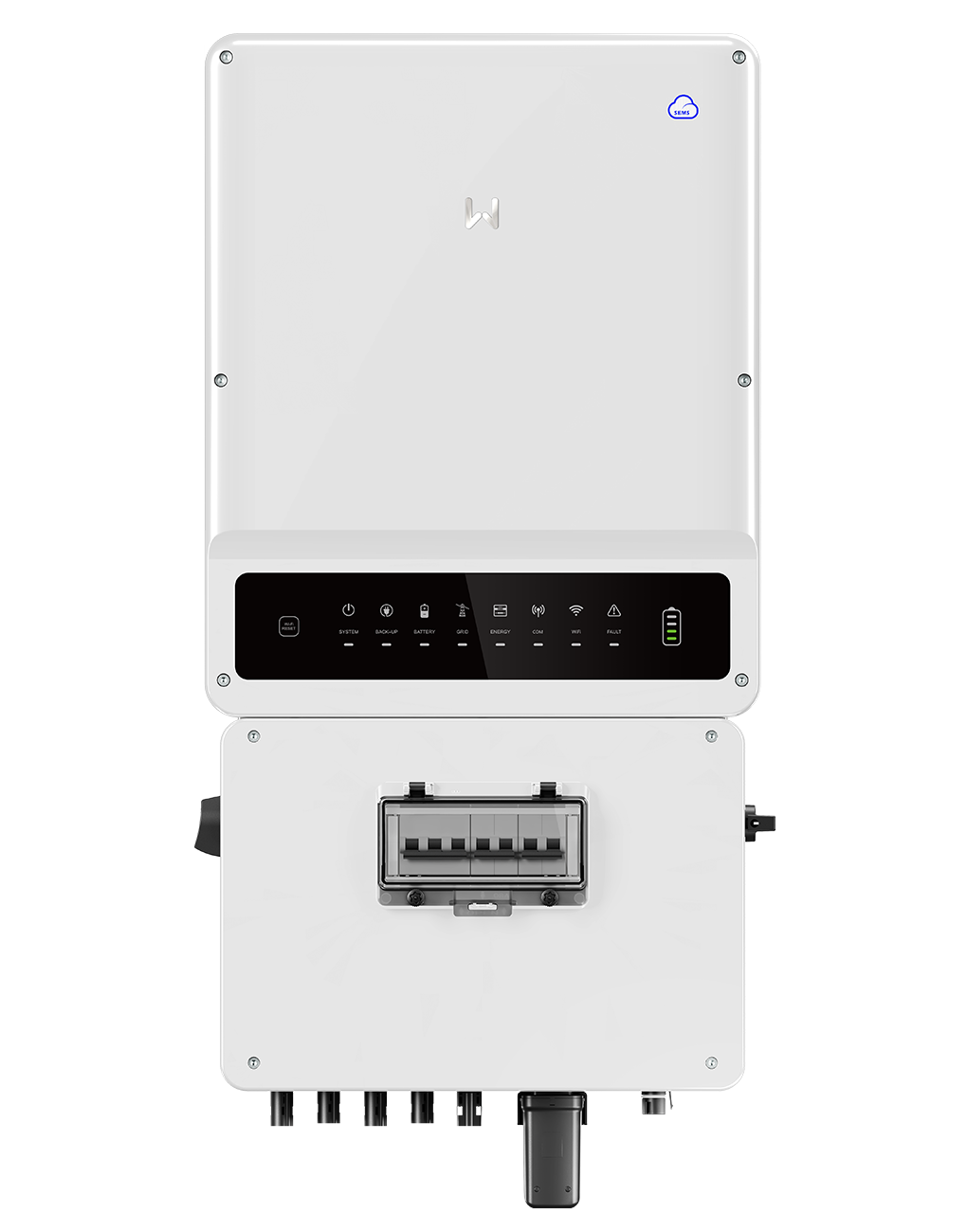

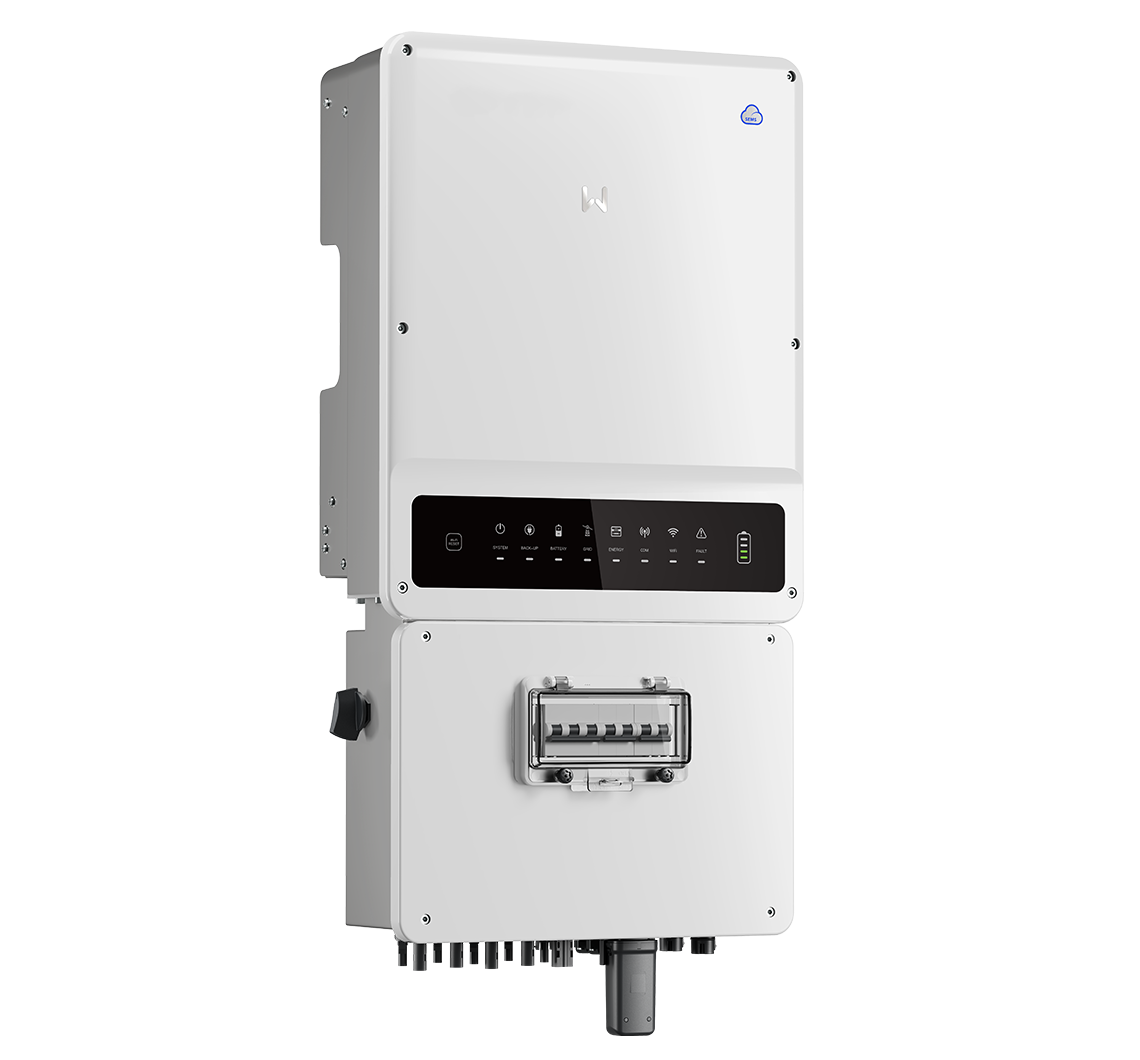

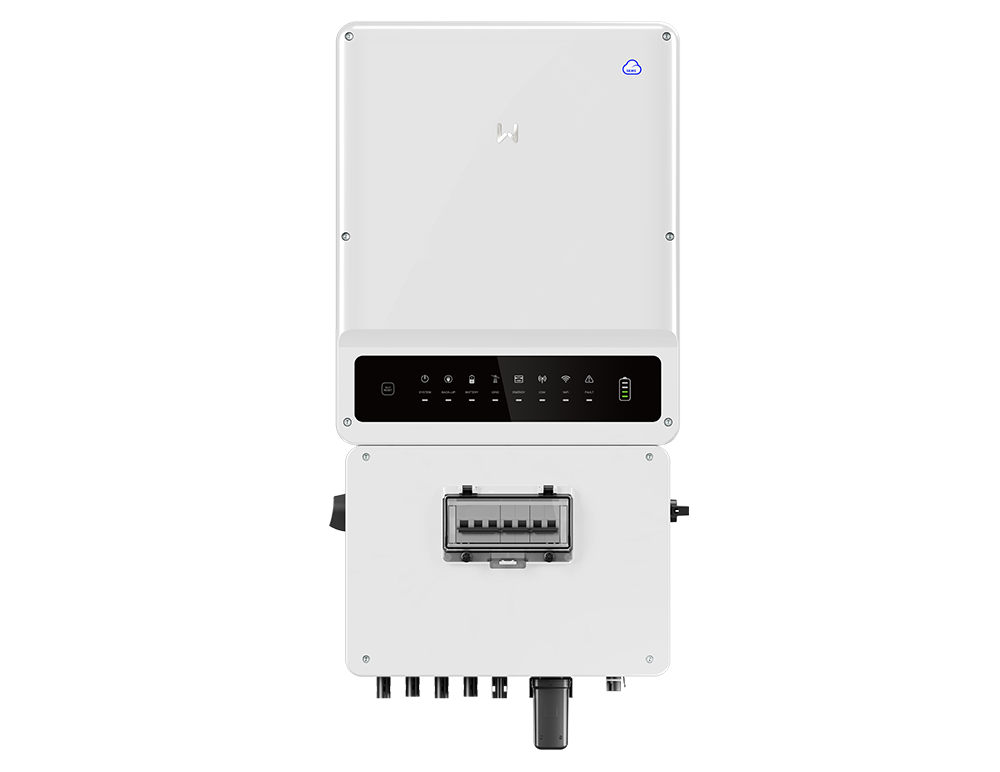

EHB Series is a single-phase hybrid inverter specially designed to meet the increasing energy storage needs from the residential segment. It is the ultimate integrated multi-function system, follows a Plug & Play design and has an external communication connector, making the installation process quick and convenient. Supporting up to 50A battery charge/discharge current, EHB can easily supply power to critical loads when the grid is compromised. It is AFCI-ready and can support rapid shutdown function. All these outstanding features make this inverter a perfect match for application in South African households.
<10 ms UPS-level Switching
AC bypass switch
AFCI ready & rapid shutdown
Strong backup power supply
Well-designed integrated architecture
4 MPPTs – higher yields
UPS-level switching
AC bypass
Strong backup
undefined
undefined
undefined
4 MPPTs – higher yields
Featuring 4 MPPTs, the EHB (5-10 kW) is the perfect solution to feed solar power to large residential properties, offering you more choices and maximizing total solar generation.
Installer-friendly
EHB Series removes all the complexities of the installation process with its well-designed integrated AC/DC breaker, Plug & Play connectors, external communication connector etc. This makes the installation much more convenient, saving not only costs but also time and space.
OVERVIEW
Model
GW5000-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13
Max. Apparent Power Output to Utility Grid (VA)
5000
Back-up Nominal Apparent Power (VA)
5000
Model
GW6500-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
6500
Back-up Nominal Apparent Power (VA)
6500
Model
GW8600-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
8600
Back-up Nominal Apparent Power (VA)
8600
Model
GW0010-EHB
Battery Voltage Range (V)
80~495
Max. Continuous Charging / Discharging Current(A)
50/50
Max. Input Current per MPPT (A)
13/13/13/13
Max. Apparent Power Output to Utility Grid (VA)
10000
Back-up Nominal Apparent Power (VA)
10000
